Description

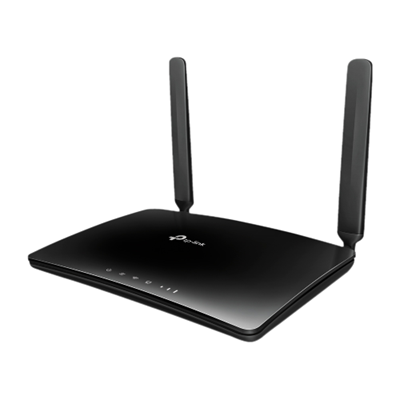

The TP-Link TL-MR6400 WiFi 4 3G/4G LTE Cat 4 Router is a plug-and-play 4G LTE router with an embedded SIM slot. This router can be easily setup and managed via TP-Link’s Tether app.
Key Features
- Cutting-edge 4G network
Share internet access with up to 32 WiFi devices and enjoy download speeds of up to 150 Mbps. - Plug a SIM card and play
No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests. - Two detachable advanced LTE antennas
Enjoy stable and efficient connections to every device thanks to the two external antennas. - WiFi router mode
Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection.Hardware Features

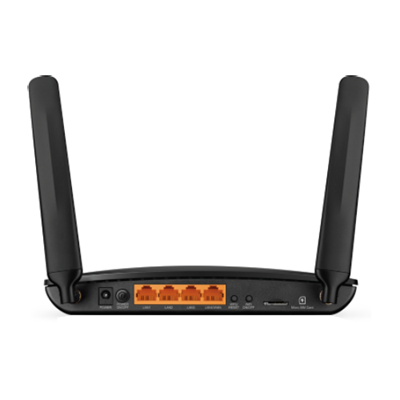

Interface
- 3 x 10/100Mbps LAN Ports
- 1 x 10/100Mbps LAN/WAN Port
- 1 x Micro SIM Card Slot
Button
- WPS/Reset Button, WiFi On/Off Button, Power On/Off Button
External Power Supply
- 9V/0.85A
Dimensions (W x D x H)
- 202 x 141 x 33.6 mm (7.95 x 5.55 x 1.32 in.)
Antenna Type
- 2 x Detachable 4G LTE Antennas
Wireless Features
Wireless Standards
- IEEE 802.11b/g/n 2.4GHz
Frequency
- 2.4GHz
Signal Rate
- 300Mbps at 2.4GHz
Reception Sensitivity
- 11g 54M: -74dBm
- 11n HT20: -71dBm
- 11n HT40: -67dBm
Transmit Power
- CE: <20dBm (2.4GHz)
Wireless Functions
- Enable/Disable Wireless Radio, WMM, Wireless Statistics
WAN Failover
- Yes
Wireless Security
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type
- 4G:
- FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
- TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
- 3G:
- DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
Software Features
Operating Modes
- 3G/4G Router, Wireless Router
Management
- Access Control, Local Management, Remote Management reboot schedule
WAN Connection Type
- Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP
- Server, Client, DHCP Client List, Address Reservation
Port Forwarding
- Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
- DynDns, NO-IP
VPN
- PPTP VPN, OpenVPN
Access Control
- Parental Control, Local Management Control
Firewall Security
- DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols
- Supports IPv4 and IPv6
Guest Network
- 1 x 2.4GHz guest network
Other Specifications
Certification
- CE, RoHS
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10
- MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0,
- Safari 4.0 browsers or higher, or other Java-enabled browsers
- Micro SIM Card
Environment
- Operating Temperature: 0°C ~ 40°C (32°F ~104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
Package Contents
- 1 x TL-MR6400 Router
- 1 x RJ45 Ethernet Cable
- 1 x Power Adapter
- 1 x Quick Installation Guide
